- Sketch
- Structure
- structural parameters
- Cable performance
- Application
- Fiber properties
- Color-coded
- Other information

Remark:material of the jackect,color and print information can be customized

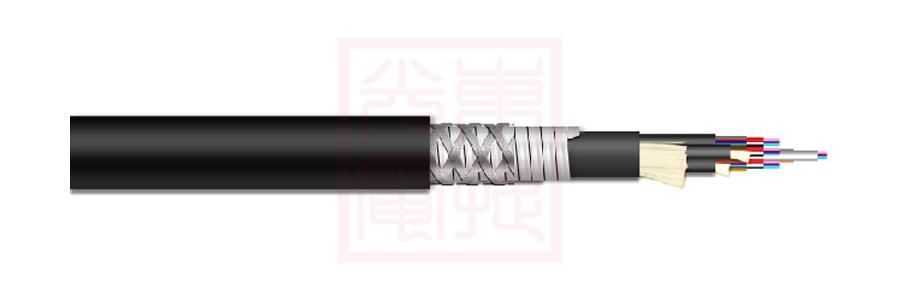

From inner to outer
Strength member:FRP;
Fiber:0.25mm 12cores ×2;
Aramid yarn:4×1100D;
Subunit sheath:LSZH;
Aramid yarn:4×1100D;
Inner sheath:PVC;
Spiral steel pipe armouring:OD 7.9mm;
Metalwoven:3(6)×16;
Outer sheath: PVC.
| Cable type | Unit | DJ-GYFHK(B)V-48S | |||
| Outer diameter of armored pipe | mm | 7.90±0.10 | |||
| Aramid yarn | Detex | 1100 | |||
| Braid size | mm | 8.20±0.10 | |||
| Outer diameter of sheath | mm | 10.0±0.50 | |||
| Sheath material | / | PVC | TPU | ||
| Temperature range | ℃ | -20~+70 | -40~+90 | ||
| Cable weight | Kg/km | 138 | |||
| Bending radius | mm | Dynamic 20D Static10D | |||
| MRDT | N | Long term600 Short term800 | |||
| Crush | N/10cm | Long term3000 Short term5000 | |||
![]() | Excellence rodent resistence | √ | ![]() | Anti-torsional | √ |
![]() | Fiber to home | √ | ![]() | Tensile | √ |
![]() | Horizontal wiring | √ | ![]() | Duct | √ |
![]() | Vertical wiring | √ | ![]() | Direct-buried | √ |
![]() | Base station stretching | ![]() | Overhead pipeline | ||
![]() | Equipment room deployment | √ | ![]() | 100% Waterproof | |
![]() | Field deployment | √ | ![]() | 100% Fireproof | √ |
| Fiber size | mm | 0.25±0.01 |
| Inner sheath material | / | LSZH |
